• Chrome front bumper w/Matte Black cover
• Chrome rear step bumper w/step pad
• Dark argent air dam
• Body-side molding w/chrome trim
• Wheel opening flares
• Deluxe chrome grille
• Dual auto composite halogen headlamps
• Daytime running lamps
• Fog lamps
• Dual cargo area lamps
• Dual chrome fold away pwr heated mirrors
• (4) full-size doors
• Solar-Ray tinted glass
• Deep tinted rear door/back glass
• Intermittent windshield wiper system
• Insulation-inc: cab, acoustic, thermal panel

• LT decor
• Leather reclining heated front bucket seats w/inboard armrest, dual pwr recline/lumbar, 2-position 6-way memory driver seat
• 3-passenger 60/40 split-folding rear bench seat w/simulated leather trim
• Floor console
• Color-keyed full floor carpeting w/front rubber floor mats
• Leather-wrapped steering wheel
• Tilt steering wheel
• Passlock II theft deterrent security system
• Driver message center warnings-inc: trans overheat, low fuel, low coolant, vehicle security, oil level/pressure/change needed
• Warning tones-inc: key-in-ignition, seat belt, headlamp, turn signal
• Cruise control
• Auto programmable pwr door locks-inc: auto lock at 15 mph, backlit switches
• Pwr windows w/backlit switches
• Remote keyless entry
• Illuminated entry
• Onstar 3-button communication system-inc: roof-mounted antenna
• Air conditioning
• Rear passenger heat ducts
• Elect rear window defogger
• ETR AM/FM stereo w/compact disc, cassette-inc: seek-scan, digital clock, auto tone control, cassette search/repeat, theft lock, speed compensated volume, 6 speakers
• Dual seat-mounted cup holders
• Dual rear cup holders
• Dual covered pwr points
• Self-dimming rearview mirror w/8-point compass & outside temp display
• Door trim w/illuminated side reflectors
• Full-feature overhead console-inc: map lights, garage door opener compartment, storage spaces
• Color-keyed cloth headliner
• Dual color-keyed padded cloth sunshades w/driver storage clip, passenger mirror
• Passenger assist handles
• Lighting-inc: dome, ashtray, glove box, underhood

• 4-wheel anti-lock brake system
• Driver & front passenger airbags
• Manual lap/shoulder safety belts, front/rear outboard seat positions
• Manual lap safety belts, center seat positions
• Head restraints at outboard seating positions
• Daytime running lamps

6.0L (364) SFI V8 (VORTEC) ENGINE

• (STD)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 15.9
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4500
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3359
• Curb Weight - Rear (lbs): 2520
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 16,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 7500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 1000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10,500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2500
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: - TBD -
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: QIZ
• Front Tire Size: LT245/75R16
• Rear Tire Size: LT245/75R16
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 2335
• Revolutions/Mile @ 45 mph - Front: 680
• Revolutions/Mile @ 45 mph - Rear: 680
• Revolutions/Mile @ 45 mph - Spare: 680
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.8
• Steering Ratio (:1), At Lock: 14.56
• Turning Diameter - Curb to Curb (ft): 49.6
• Turning Diameter - Wall to Wall (ft): 51.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 237.3
• Width, Max w/o mirrors (in): 79.7
• Height, Overall (in): 76.2
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 47.3
• Front Bumper to Back of Cab (in): 138.7
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 42.1
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 63.8
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 63.8
• Cargo Volume (ft³): 56.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 38.6
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary

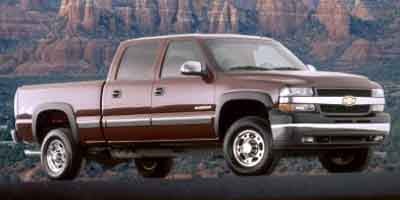

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
